Product Details:
|
| Table Size (mm): | 1200x900 | Table Travel (X) (mm): | 1400 Mm |
|---|---|---|---|
| Table Travel (Y) (mm): | 900 Mm | Table Travel (Z) (mm): | 700 Mm |
| Number Of Axes: | 4 | Max. Table Load(kg): | 5000 |
| Travel (W-axis) (mm): | 600 Mm | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Not Available | Marketing Type: | New Product 2020 |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Motor, Principal Axis, Servo System |
| Positioning Accuracy (X Axis) Mm: | ±0.03/500 | Positioning Accuracy (Y Axis) Mm: | ±0.03/500 |
| Positioning Accuracy (Z Axis) Mm: | ±0.03/500 | No. Of Spindles: | Single |
| Range Of Spindle Speed(r.p.m): | 1000 R.p.m | Spindle Motor Power(kW): | 15 |
| Type: | Horizontal | Condition: | New |
| CNC Or Not: | CNC | Production Capacity: | 30 Sets/month |
| Voltage: | 380V | Dimension(L*W*H): | 3500x4200x3100mm |
| Weight (T): | 10 T | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Applicable Industries: | Manufacturing Plant, Machinery Repair Shops, Energy & Mining, Metal Mold |

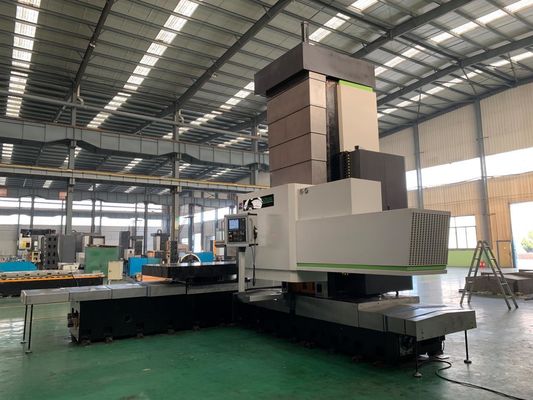

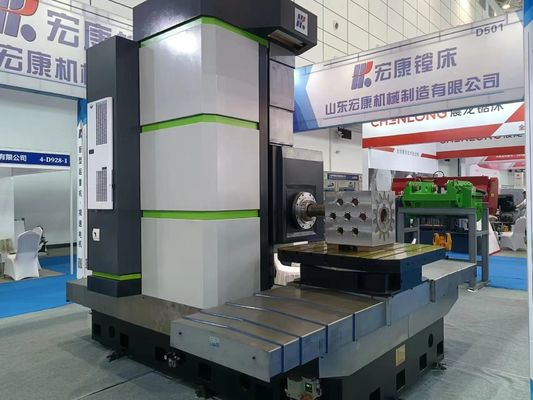

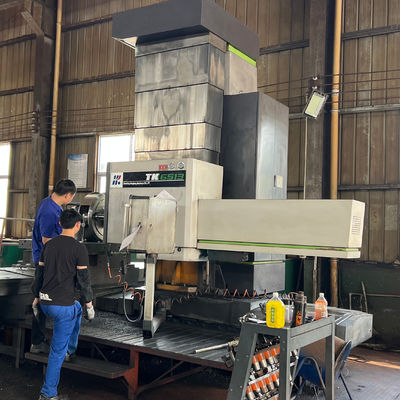

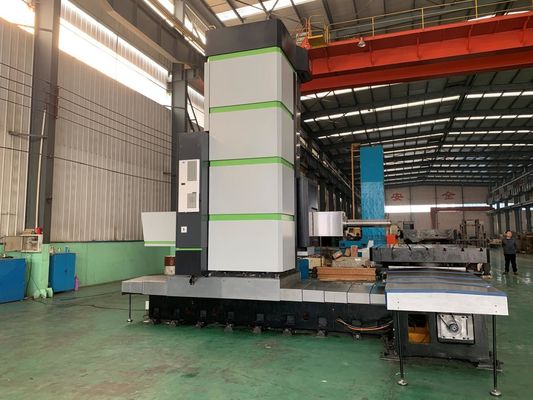

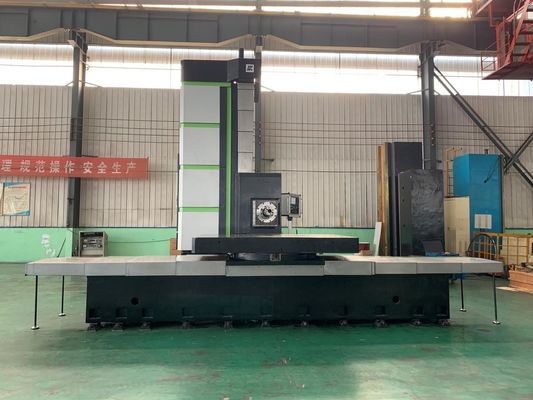

| Showroom Location: | None | Product Name: | Boring Machine Tool |
| After-sales Service Provided: | One Year | Product Type: | Boring Machine |
| Port: | Qingdao Port |
item | value |
Table Size (mm) | 1200x900 |
Table Travel (X) (mm) | 1400mm |
Table Travel (Y) (mm) | 900mm |
Table Travel (Z) (mm) | 700mm |
Number of Axes | 4 |
Max. Table Load(kg) | 5000 |
Travel (W-axis) (mm) | 600mm |
Video outgoing-inspection | Provided |
Machinery Test Report | Not Available |
Marketing Type | New Product 2020 |
Warranty of core components | 1 Year |
Core Components | PLC, Motor, principal axis, servo system |
Positioning Accuracy (X axis) mm | ±0.03/500 |
Positioning Accuracy (Y axis) mm | ±0.03/500 |
Positioning Accuracy (Z axis) mm | ±0.03/500 |
No. of Spindles | Single |
Range of Spindle Speed(r.p.m) | 1000r.p.m |
Spindle Motor Power(kW) | 15 |
Type | Horizontal |
Condition | New |
CNC or Not | CNC |
Production Capacity | 30 sets/month |
Place of Origin | China |
Shandong | |
Brand Name | Hongkang |
Voltage | 380V |
Dimension(L*W*H) | 3500x4200x3100mm |
Weight (T) | 10T |
Warranty | 1 Year |
Key Selling Points | Competitive Price |
Applicable Industries | Manufacturing Plant, Machinery Repair Shops, Energy & Mining, Metal mold |
Showroom Location | None |
Product name | Boring Machine Tool |
After-sales Service Provided | One Year |
Product type | Boring Machine |
