Product Details:
|
| Cutting Width (mm): | 2000 - 12000 Mm | Material Thickness(mm): | 3 - 12 Mm |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Warranty Of Core Components: | 1 Year |
| Core Components: | Gearbox | Cutting Speed(m/min): | 3000 - 6000 Mm |
| Coil Weight (T): | 35 T | Condition: | New |
| Voltage: | 380V Or Customized | Rated Power: | 681 |
| Dimension(L*W*H): | 101500*13225*1100MM | Weight: | Customized |
| Year: | 2023 | Key Selling Points: | Long Service Life |
| Warranty: | Other | Applicable Industries: | Manufacturing Plant |
| Showroom Location: | None |
We have more than 20 years of design and R&D experience, strong production, processing and manufacturing capabilities, various advanced and professional processing and testing equipment, and rich after-sales experience.

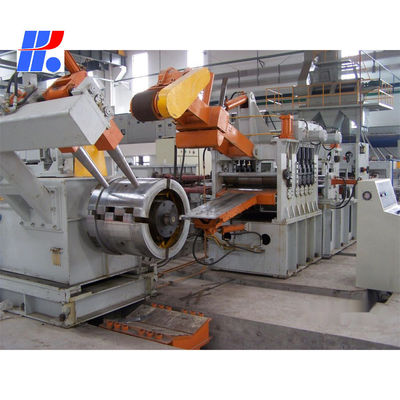

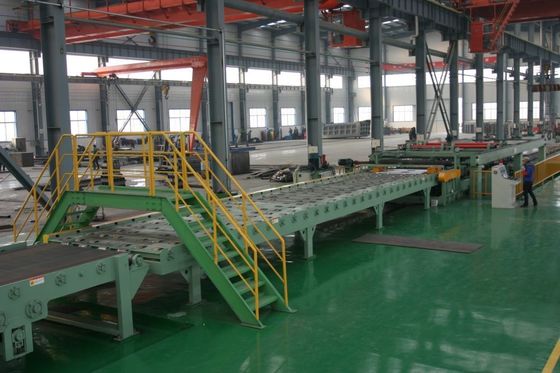

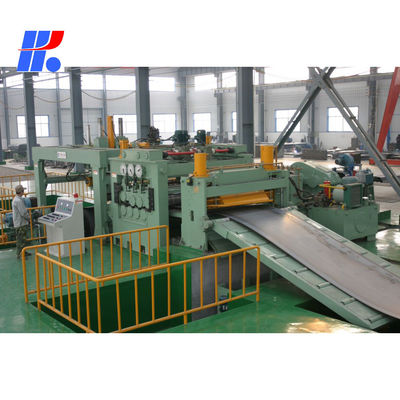

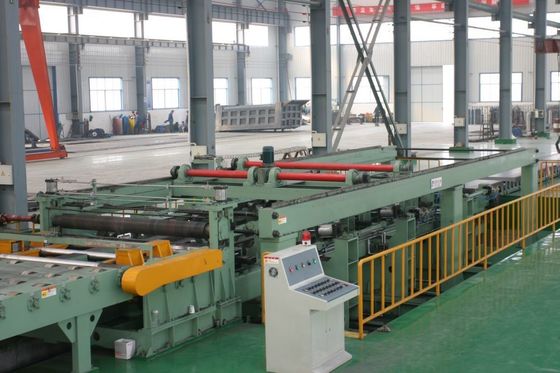

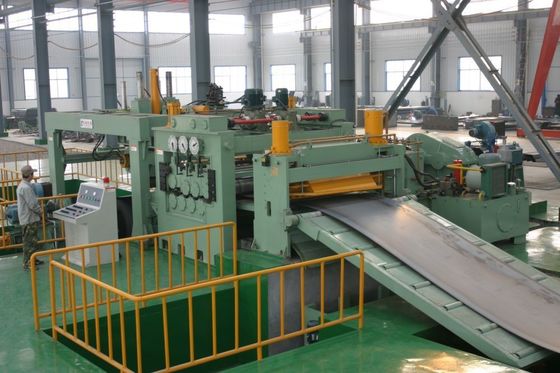

3mm-12mm×2000mmCross-cutting moving shear line of hot rolled steel coil
| 1 | application | Hot rolled steel coil ,Hot rolled pickling steel coil |
| 2 | Thickness of coiled plate | 3-12mm |
| 3 | W idth of coiled plate | 900-2000mm |
| Cutting length | 2000-12000mm | |
| 4 | Line speed | 30-60m/min |
| 5 | Loading capacity | ≤35T |
| 6 | Coil I.D | Φ762±20mm |
| 7 | Coil O.D | Φ1000/Φ2000mm |
| 8 | Length accuracy | ± 1mm |
| 10 | Levelling accuracy | ± 1.5mm |
| 1 1 | Direction of feed material | from Right to Left or Left to Right(customized |
| 12 | aggregate capacity | 681KW |
| 13 | area covered | 101500×13225×1100mm |
| 14 | total weight | 277T |
| - 1.Steel coil saddle | 1 set | ||
| -2.W inding car | 1 set | ||
| -3Uncoiler | 1 set | ||
| -4. Homing device | 1 set | ||
| -5.3-roller traction device | 1 set | ||
| -6.Burr treatment device | 1 set | ||
| -7Centering device | 1 set | ||

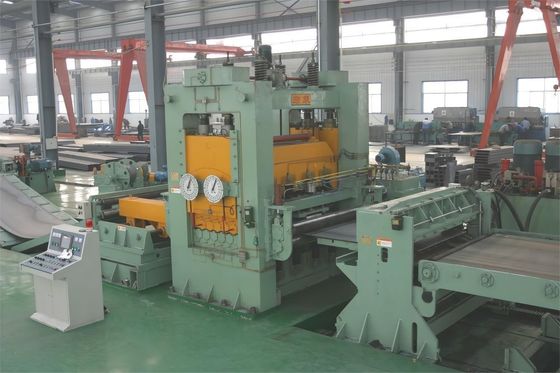

| -8. 1 1 Roll leveller | 1 set | ||
| -9. Measuring device | 1 set | ||
| - 10.Mobile shear | 1 set |
| - 10.Belt conveyor | 1 set | ||
| - 11.Hydraulic lifting table | 1 set | ||
| - 12.Lifting palletizing trolley | 1set | ||
| - 13.Hydraulic equipment | 1 set | ||
| - 14.Pneumatic equipment | 1 set | ||
| - 15.Electrical control system | 1 set |
Shandong Hongkang Machinery Manufacturing Co., Ltd. is a manufacturer and exporter of machinery and equipment integrating R&D design, manufacturing and sales service, located at the western foot of the famous Mount Tai, founded in 1998.The leading products are CNC sheet uncoiling, leveling and shearing production line, CNC gold cutting machine tool, frequency conversion motor, planetary gear reducer and crane.
The company has strong production, processing and manufacturing capabilities, with various types of advanced, professional processing and testing equipment to ensure processing quality and delivery time to meet customer needs.The company pays attention to the introduction, training and use of talents, and the proportion of engineering and technical personnel with middle and senior titles and skilled workers increases year by year.
The company is a national high-tech enterprise with six provincial innovation platforms such as Shandong Provincial Enterprise Technology Center and Shandong Industrial Design Center, and more than 100 national invention and utility model patents. Successively passed three management system certifications of quality (ISO9001), environment (ISO14001) and occupational health and safety (ISO45001) and CE certification. Responsible for the development of 17 national and industry standards of leading products.
